Hot Air Machines
//Hot Air Machines

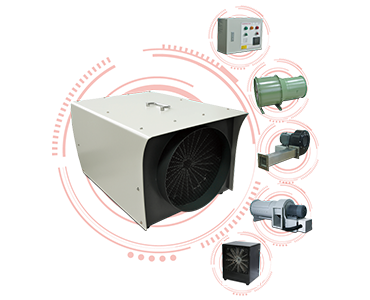

Hot Air Drying Machine
JUST THREE MINUTES！
- We make your heating technology advance for ten years with superconductive heater patent & professionally manufactured
- Purpose：
To convey dryer. dry house for agricultural & industrial products. heating fan oven. green house of animals & plants.
The superconductive heating fan has longer life and consumes less power than traditional heating pipe ceramic infrared heater. In addition, it can attain higher temperature and has better efficient than those heated by gas or buring fuel.
The superconductive heating fan incorporates an extremely thin superconductive heater as its scource, the air vent can reach its operating temperature within one second when plugged in, and return to normal temperature within two to three seconds after shut down the unit. By using a fan as the convection heat transfer method, the unit disspates over 90% of its heat output to the odject, which will not have fire light while the temperature is increasing. For example, when the superconductive heater heats up to 800℃, it remains only 80℃on heater itself, the other heating source is tramistted to whole space and/or objects.
( 1 ) Mounting method：Superconductive heater can be mounted at the input vents of output vents of any kinds of fans, or in a stove or drying house. A set fan can mount a few pcs of superconductive heaters.
( 2 ) Volume of superconductive heater：Thickness：20-50 MM/pc
( 3 ) Diameter of disc：4,8,10,12,14,16,18---36 inches.
( 4 ) Power of superconductive heater heater：1 KW-100KW/pc can be manufactured. It can contin a few pcs of superconductive heater at the same time and fit various kinds of volt.
( 5) Temperature of superconductive heater：The max. Temperature is 1,000℃.
( 6 ) PURPOSE：To convery dryer. Oven of hot air, To dry agricultural & Industrial products, green house for animal & plants.

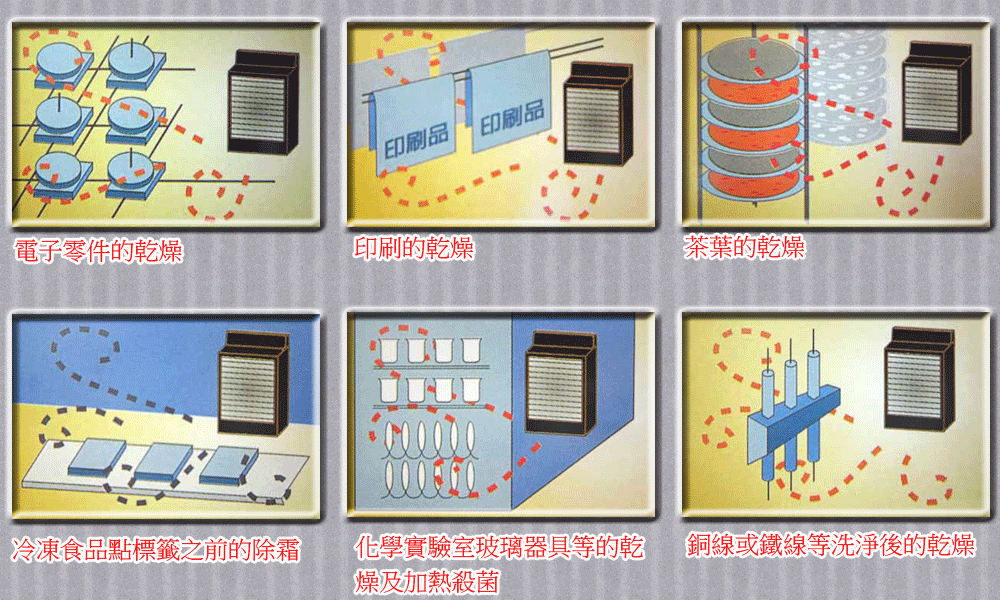

( 7 ) Suitable range：Drying metals, plastic paint, agricultural & industrial products, wooden products, paper, food products and chemical products.
Characteristics
- No flash fire and sparks when started.
- High efficient of heat conduction.
- Radiant heat less than 5%, will not heat to the mashine casing.
- Immediately warming ( 1 second ).
- No burning smell and keep oxygen contest.
Chart A comparison of characteristics between superconductive heating fan and general dry equipments
| Heated method | Heated speed | Radiation heat | Method of conducting heat |
Evenness of temperature |
|---|---|---|---|---|
| Superconductive heater | Very fast | 5% (Low) | Direct | High |
| Oil fuel | Medium | 100% (High) | Indirect | Medium |
| Gas | Medium | 100% (High) | Indirect | Medium |
| Heating tube | Slow | 40% (High) | Indirect | Medium |
Chart B comparison of efficiency and cost for various kinds of energy
| Heated method | Efficiency | Electricity costs | Maimtemance cost |
Equipment cost |
Management cost |
|---|---|---|---|---|---|
| Superconductive heating fan | 95% | US$3.0 | Very low | Low | Very low |
| Gas burning machine | 35% | US$15.0 | High | High | High |
| Oil burning machine | 30% | US$17.0 | High | High | High |
| General heating tube | 20% | US$22.0 | Medium | Medium | Medium |
| Wood | 20% | US$22.0 | Medium | Medium | High |
Chart C comparison of heating speed of different hot wind
Chart D dissipating speed of heating objects ( comparison of safety )
Note：The test is proceeding when power shuts bown or motor of fan breaks bown during a normal work.
- High temperature withstanding test for life：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Exhaust Fan Type 18"YT-1803B - Foodstuff：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Multi-blade Type ED-400(Direct Connection Type)、Multi-blade Type ED-400(Belt Type) - Pet Industry、Electronic industry、Household equipment industry：
Box Type 18"YT-1883B、Box Type 18"YT-1885B - Plant Industry：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Axial Flow Type ED-300 - Rubber and plastic industry、Metal Industry、Building materials industr、Firecrackers and incense industries、Paper and wooden industry：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Exhaust Fan Type 18"YT-1803B、Multi-blade Type ED-400(Direct Connection Type)、Multi-blade Type ED-400(Belt Type) - Cotton cloth industry：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Exhaust Fan Type 18"YT-1803B、Multi-blade Type ED-400(Direct Connection Type)、Multi-blade Type ED-400(Belt Type)、Multi-blade Type ED-55 - Fishery and livestock farming：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Box Type 16"YT-1663B - Automotive paint spray and baking varnish：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Multi-blade Type ED-55、Multi-blade Type ED-400(Direct Connection Type)、Multi-blade Type ED-400(Belt Type) - Temperature rising for laboratory and space：
Multi-blade Type ED-400(Direct Connection Type)、Multi-blade Type ED-400(Belt Type) - Conveyor dryer and oven：
Multi-blade Type ED-50、Multi-blade Type ED-55、Multi-blade Type ED-400(Belt Type)、Hot-Air Drying Machine、EMH-100 Super Conductive Warm Air Blower - Decayed waste：
Rotary Dry Oven - Others：
Box Type 18"YT-1883B、Box Type 18"YT-1885B、Exhaust Fan Type 18"YT-1803B、Multi-blade Type ED-55、Multi-blade Type ED-400(Direct Connection Type)、Multi-blade Type ED-400(Belt Type)、Hot-Air Drying Machine
